Component List & View Credits

Component List

On the "Workflow Builder" page, when setting up Automation, App, or AI Chatbot (Mode = Advanced)

To add a new node:

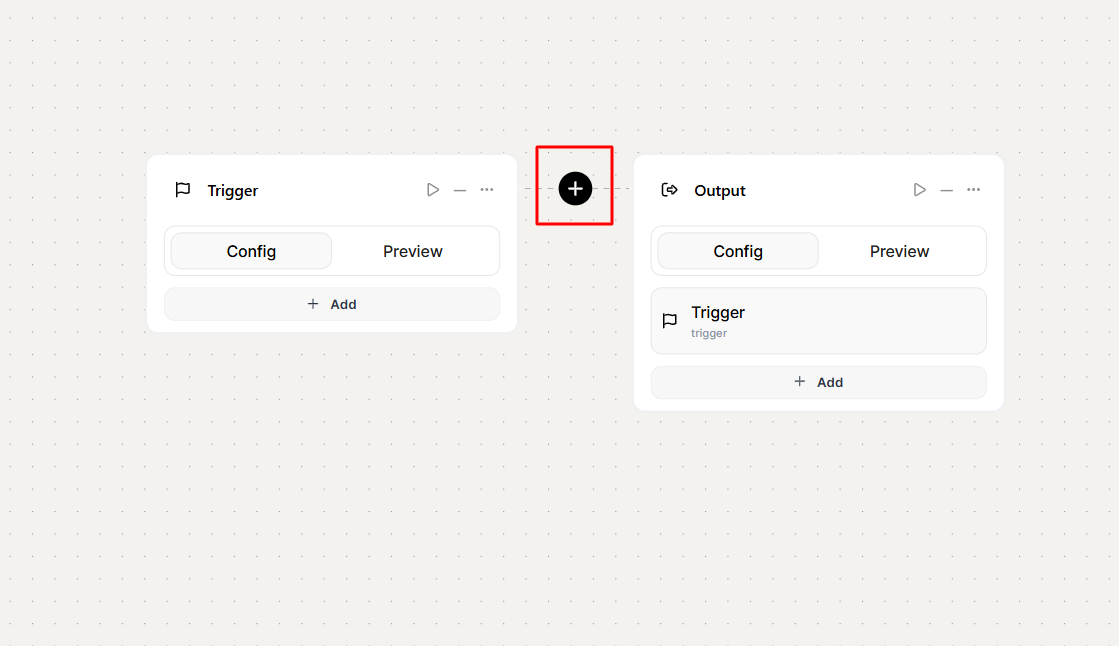

Step 1: Click the "+" button.

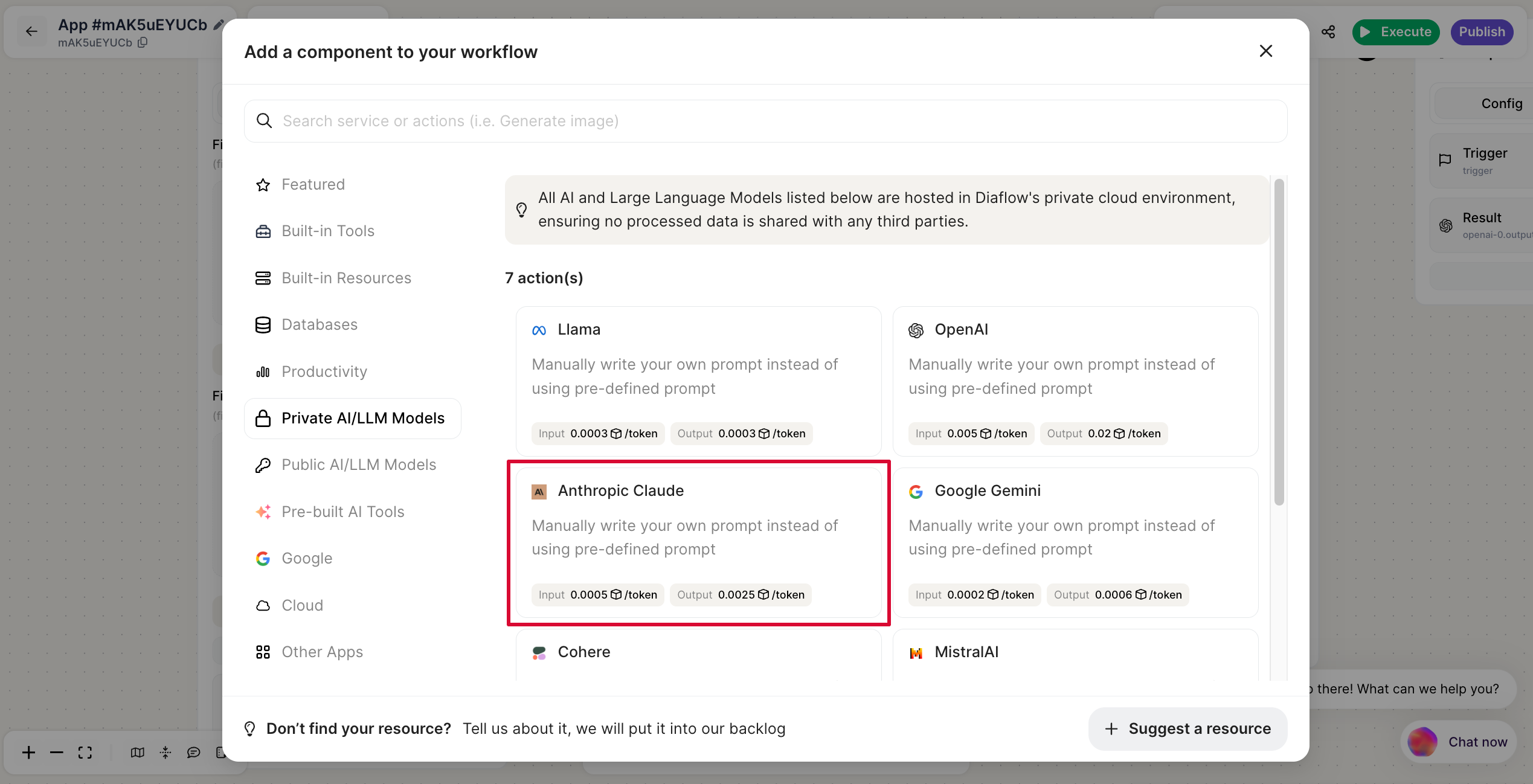

Step 2: The system will display the "Component List" popup, from which the user can select the desired node to add.

Step 3: The Node will display in the workflow

Credits

A - Nodes that Consume Credits

On the "Component List" popup, for nodes that consume credits in Diaflow, a credit indicator will be displayed.

Common credit units include:

Unit Type
Apply for
Credit Calculation Formula
Note
Example

Token

Applied to AI/LLM nodes that generate text output.

When the node runs → credit burn = (Input credits × Input tokens) + (Output credits × Output tokens)

Round credits using the rule: – Round to nearest integer – Minimum = 1 credit

  1. Input credits = 2 credits

  2. Output credits = 10 credits

  3. Input token = 100 tokens

  4. Output token = 150 tokens

-> Burn = 2×100 + 10×150 = 1.700 credits

Character

Applied to AI/LLM nodes that generate text output

When the node runs → credit burn = Output Credits × Number of characters

Round credits using the rule: – Round to nearest integer – Minimum = 1 credit

  1. Output Credits = 10 credits

  2. Text = 40 character

-> Burn = 400 credits


Applied to AI/LLM nodes that generate images.

When the node runs → credit burn = Output Credits × Number of images

  1. Output Credits = 10 credits

  2. Node generates: 2 images

-> Burn = 20 credits

Second

Applied to AI nodes that process tasks measured in time (per second)

When the node runs → credit burn = Output Credits × Duration (seconds)

Round credits using the rule: – Round to nearest integer – Minimum = 1 credit

  1. Output Credits = 6 credits

  2. Node runs for 20 seconds

-> Burn = 120 credits

Request

Applied to nodes in the "Apps" category.

When the node runs → credit burn = Output credit

  1. Output (Admin) = 3 credits

  2. User runs node once

→ Burn = 3 credits

B - Nodes that Do Not Consume Credits

On the "Component List" popup, nodes that do not consume any credits will also have a clear indicator showing they are free to use.
